Discover the XRL1351 adjustable line laser light. Features 10-80V DC input, IP67 waterproof rating, aluminum housing for rapid heat dissipation, and precise 1-5m line adjustment for industrial use.
| Parameter | Specification |
|---|---|
| Model | XRL1351 |
| Laser Light Source | High brightness laser 1pcs |

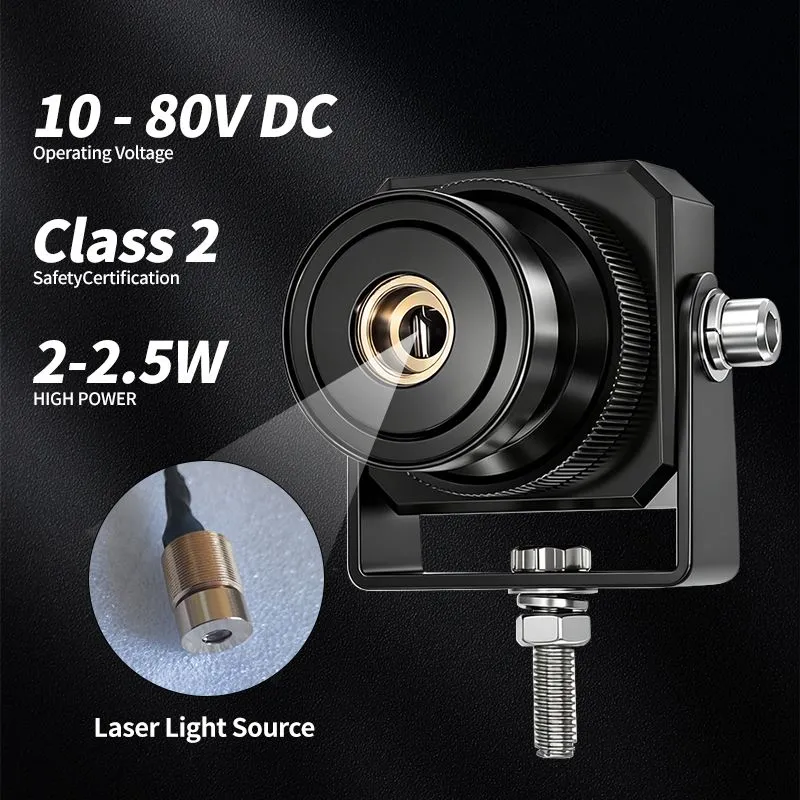

| Voltage | DC10-80V |
| Power | 2-2.5W |
| Optional Color | RED: 700mw / Green: 300mw / BLUE: 1600mw |

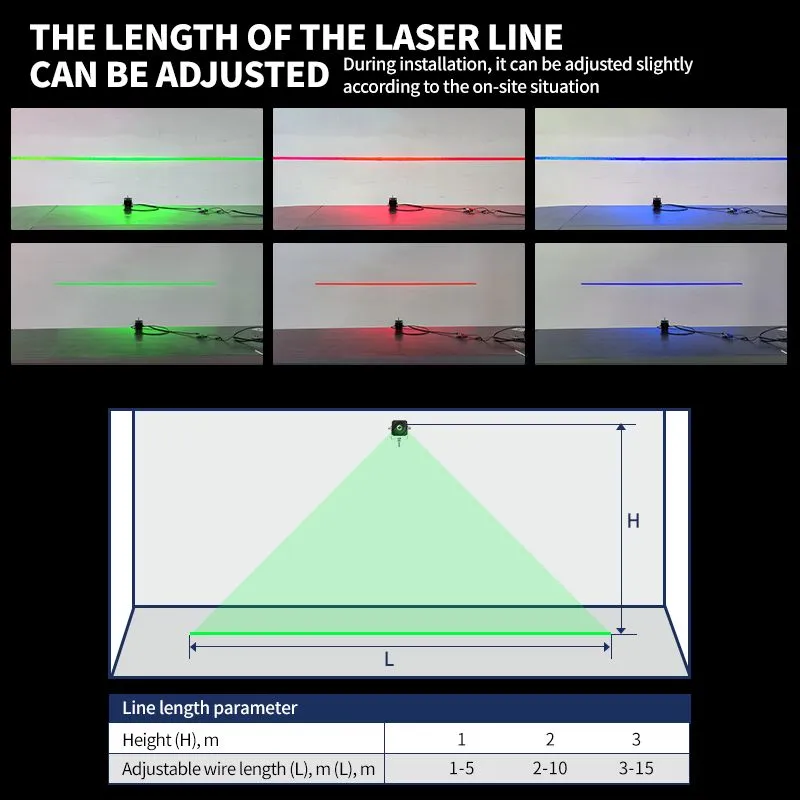

| Adjustable Wire Length | At 1M height, line length ranges 1-5M; adjustment ratio 1:0.33 |
| Housing | Aluminium |
| Bracket | Stainless steel with black painting |
| Working Temperature | -30~55°C |
| Light Beam | Line beam |
| Waterproof | IP67 |
| Safety Certification | Class 2 / FDA |
The XRL1351 Adjustable Line Length Laser Light is engineered for industrial precision. Featuring a wide 10-80V DC input and robust aluminum housing, it ensures reliable operation in harsh environments. This Class 2/FDA certified device offers adjustable line lengths from 1 to 5 meters at a 1-meter height, providing versatile positioning guidance. With an IP67 waterproof rating and rapid heat dissipation design, it maintains stability across temperatures from -30°C to 55°C. Ideal for automation and machinery, this high-brightness laser delivers accurate line beams for enhanced safety and efficiency in demanding applications.

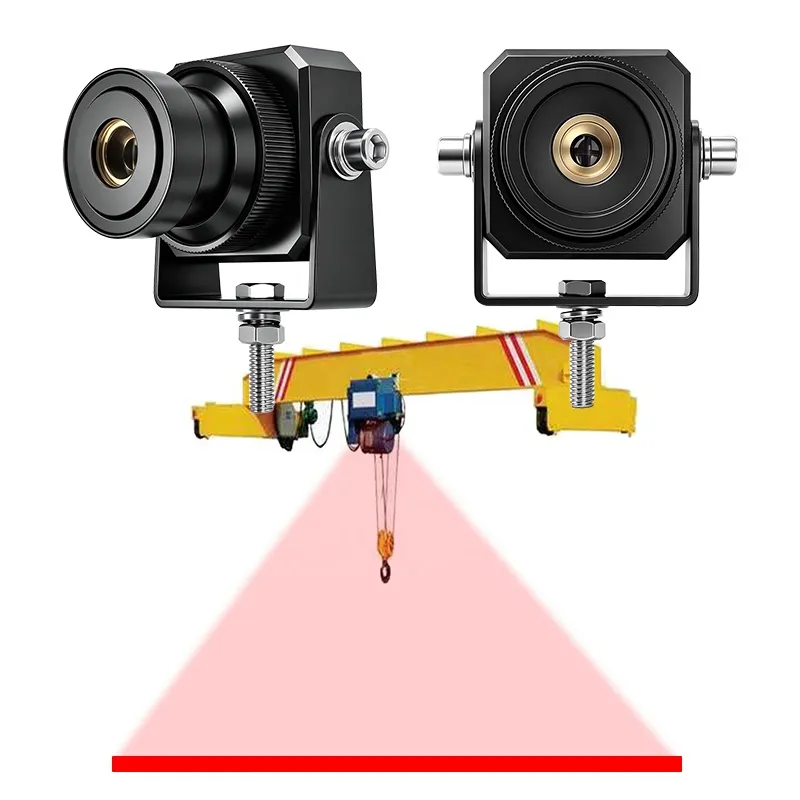

Wide Voltage Compatibility & Adjustable Focus
The XRL1351 solves the problem of power incompatibility and rigid focusing found in standard lasers. Supporting a massive 10-80V DC range, it integrates seamlessly into diverse industrial power systems without extra transformers. Crucially, its adjustable wire length feature allows the line projection to scale from 1 to 5 meters based on a 1:0.33 ratio. This means operators can fine-tune the laser’s field of view to match specific machine widths or safety perimeters, eliminating blind spots or excessive spill-over light that causes glare.
Superior Environmental Protection & Safety Compliance
Operating in harsh conditions requires more than just basic functionality. The XRL1351 features an IP67 waterproof rating, completely protecting internal components against dust ingress and temporary water immersion, making it suitable for washdown areas or outdoor use. It operates reliably in extreme temperatures ranging from -30°C to 55°C. Furthermore, it holds Class 2 and FDA safety certifications, ensuring that while the laser is bright enough (up to 1600mW for blue) for clear visibility, it remains safe for incidental human exposure, meeting strict regulatory standards for workplace safety.

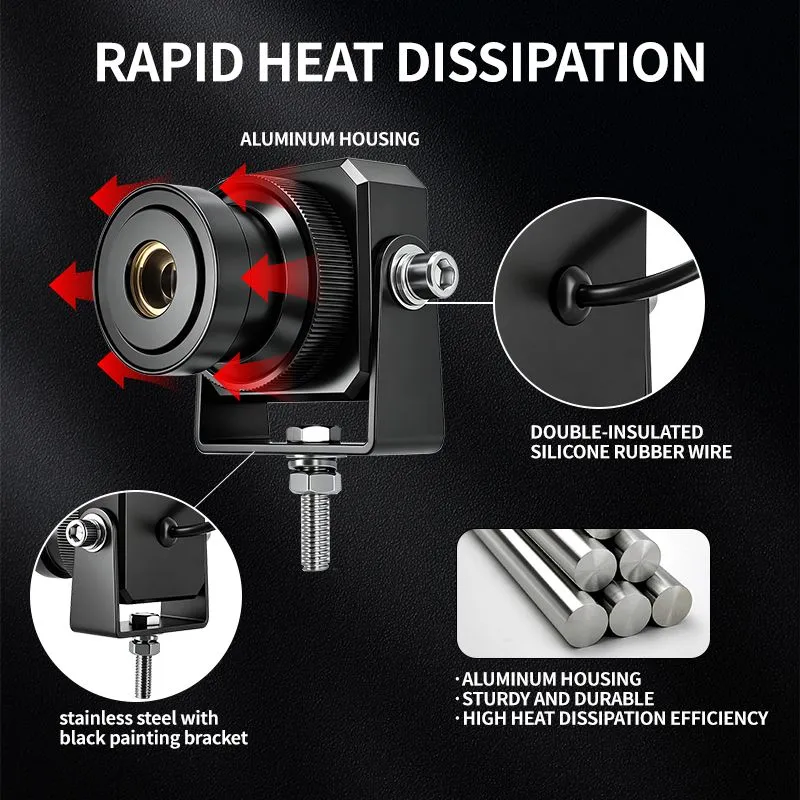

Rapid Heat Dissipation & Robust Construction
Industrial lasers often fail due to overheating or physical damage. This model addresses these issues with a specialized aluminum housing designed for rapid heat dissipation, ensuring the laser diode maintains consistent brightness and longevity even during 24/7 operation. The unit is paired with a black-painted stainless steel bracket that resists corrosion and vibration. Combined with double-insulated silicone rubber wiring, the system withstands mechanical stress and thermal fluctuations, significantly reducing downtime caused by component failure in heavy-duty manufacturing environments.
